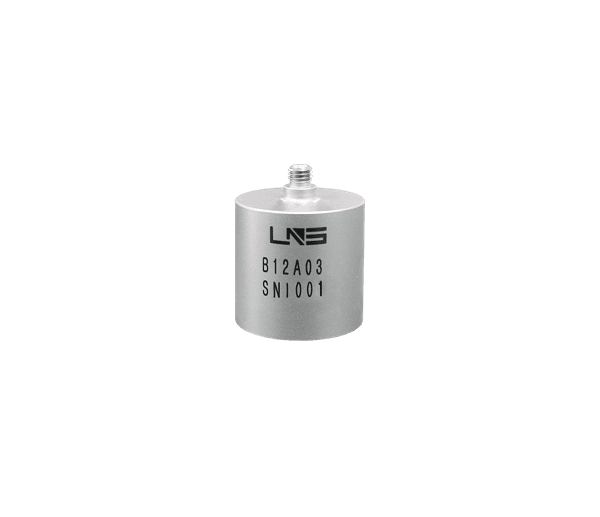

B12A03
High-Sensitivity IEPE Accelerometer, Uniaxial
Sensitivity: 10000mV/g
Range: ±0.5g
Frequency (5%): 0.7-700Hz
Temp Range: -40~85°C
Connector: Top
Mount: 10-32 Female
- Fast Lead Time (2-14 Days)
Description
High-Sensitivity IEPE Accelerometer, Uniaxial
Sensitivity: 10000mV/g
Range: ±0.5g
Frequency (5%): 0.7-700Hz
Temp Range: -40~85°C
Connector: Top
Mount: 10-32 Female
Datasheet: B12A03
Additional information
| Sensitivity (mV/g) | 10000 |
|---|---|
| Range (g) | 0.5 |
| Broadband Resolution (g rms) | 0.000004 |
| Linearity | 1% |
| Frequency Range [5%] (Hz) | 0.7-700 |
| Min Frequency [5%] (Hz) | 0.7 |
| Max Frequency [5%] (Hz) | 700 |
| Frequency Range [10%] (Hz) | 0.5-900 |
| Resonant Frequency (kHz) | ≥7 |
| Discharge Time Constant (s) | ≥10 |
| Transverse Sensitivity | ≤5% |
| Excitation Voltage (Vdc) | 20-30 Vdc |
| Constant Current Excitation (mA) | 2-20 mA |
| Output Impedance (Ω) | ≤100 |
| Output Bias Voltage (V) | 8-12 Vdc |
| Max Acceleration (g) | 40 |
| Max Shock (g) | 100 |
| Temperature Range (℃) | -40~85 |
| Min Temperature (℃) | -40 |
| Max Temperature (℃) | 85 |
| Sensitivity Temperature Coefficient (%/℃) | 0.08 |
| Sealing | Laser Welding IP68 |
| Housing Material | Stainless Steel |
| Output Connector | 10-32 (Top), M5 (Top) |
| Mounting | 10-32 Female |
| Weight (grams) | 135 |
| Sensor Type | High-Sensitivity |
| Output Type | IEPE |
| Axis | Uniaxial |
| TEDS Optional | No |
