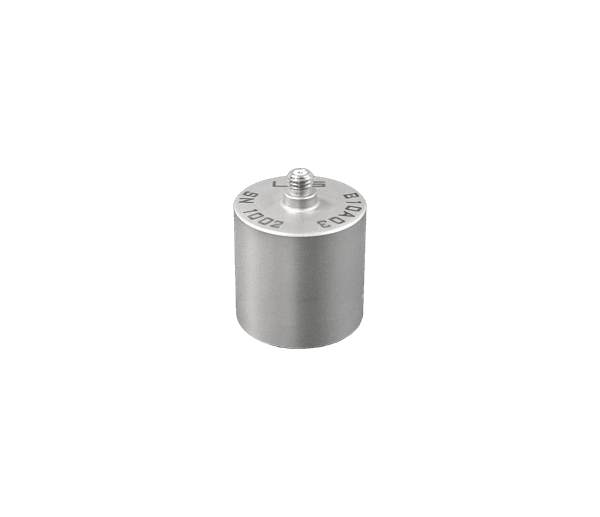

B10A03 IEPE Seismic Accelerometer
IEPE

B10A03

High-Sensitivity IEPE Accelerometer, Uniaxial
Sensitivity: 1000mV/g
Range: ±5g
Frequency (5%): 0.1-1k Hz
Temp Range: -40~85°C
Connector: Top
Mount: 10-32 Female

  • Check Mark Fast Lead Time
SKU: B10A03 Categories: , ,

Description

High-Sensitivity IEPE Accelerometer, Uniaxial
Sensitivity: 1000mV/g
Range: ±5g
Frequency (5%): 0.1-1k Hz
Temp Range: -40~85°C
Connector: Top
Mount: 10-32 Female

Datasheet: B10A03

Additional information

Sensitivity (mV/g)

1000
Range (g)

5
Broadband Resolution (g rms)

0.000003
Linearity

1%
Frequency Range [5%] (Hz)

0.1-1k
Min Frequency [5%] (Hz)

0.1
Max Frequency [5%] (Hz)

1000
Resonant Frequency (kHz)

≥7
Discharge Time Constant (s)

≥10
Transverse Sensitivity

≤5%
Excitation Voltage (Vdc)

20-30 Vdc
Constant Current Excitation (mA)

2-20 mA
Output Impedance (Ω)

≤100
Output Bias Voltage (V)

8-12 Vdc
Max Acceleration (g)

40
Max Shock (g)

100
Temperature Range (℃)

-40~85
Min Temperature (℃)

-40
Max Temperature (℃)

85
Sensitivity Temperature Coefficient (%/℃)

0.08
Sealing

Laser Welding IP68
Housing Material

Stainless Steel
Output Connector

10-32 (Top), M5 (Top)
Mounting

10-32 Female
Weight (grams)

135
Sensor Type

High-Sensitivity
Output Type

IEPE
Axis

Uniaxial
TEDS Optional

No
