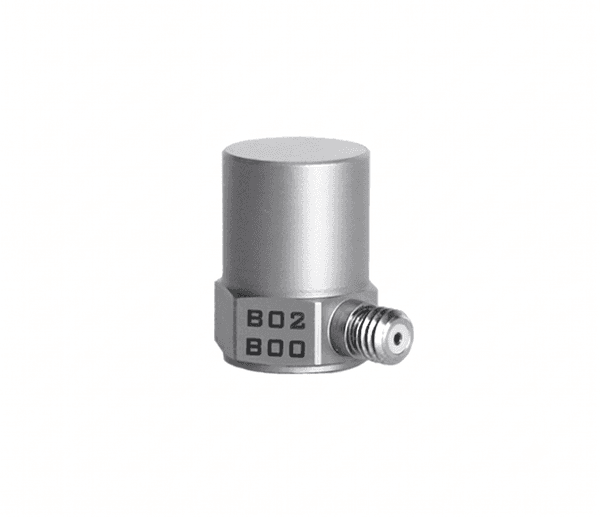

B02B00

General Purpose IEPE Accelerometer
Uniaxial
Sensitivity: 10mV/g
Range: ±500g
Frequency (5%): 2-10k Hz
Temp Range: -40~120°C
Connector: Side
Mount: 10-32/M5 Female

Fast Lead Time

Datasheet (PDF): B02B00

SKU: B02B00 Categories: Accelerometers, General Purpose, IEPE, TEDS

IEPE General-Purpose Uniaxial Accelerometer · Side connector · TEDS optional

Overview

The B02B00 is a general-purpose uniaxial IEPE accelerometer built on a piezoelectric ceramic shear structure with a wide-bandwidth frequency response. With 10 mV/g sensitivity and a ±500 g range it is the highest-range model in the family, with the widest bandwidth for high-level vibration and moderate shock testing. Typical uses include durability and powertrain testing, HALT/HASS screening, vibration control and high-level machinery vibration.

High-quality ceramics ensure long-term stability and the built-in low-impedance IEPE circuit keeps output noise low. The HEX 13.1 × 18.8 mm stainless-steel housing is laser welded to IP68 with a low-profile side connector and an M5 mounting thread at the base, with 10-32 connector and thread versions available.

10 mV/g

Sensitivity (±10%)

±500 g

Measurement range

2 – 10k Hz

Frequency range (±5%)

−40 to +120 °C

Operating temperature

12 g

Weight

HEX 13.1 × 18.8 mm

Stainless steel, IP68

Why engineers choose the B02B00

Shear-mode piezoceramic

High-quality piezoelectric ceramic in a shear structure gives a wide-band response to 10 kHz with 1% non-linearity and long-term stability for years of accurate measurement.

Built-in IEPE electronics

Low-impedance IEPE circuit with 2–20 mA constant-current excitation. Spectral noise of 24 µg/√Hz at 100 Hz and 0.001 g rms broadband resolution for clean, low-noise signals.

Rugged stainless housing

Laser-welded HEX 13.1 × 18.8 mm stainless-steel housing sealed to IP68, weighing 12 g and rated to 2,200 g rms vibration and 5,500 g pk shock. Side connector with M5 or 10-32 options.

Typical applications

Modal analysis
Vibration control and shaker testing
General vibration monitoring
Rotating machinery and condition monitoring
Automotive and industrial NVH
Low-clearance installations where a side cable exit helps

What’s in the box

B02B00 general-purpose accelerometer
Product calibration certificate
Mounting screw

Options & accessories

TEDS (IEEE 1451.4) for plug-and-play sensor ID – order model 20200B
Optional versions: B02B00-A with 10-32 output connector, B02B00-E with 10-32 mounting thread
Titanium-alloy housing available as an option for lower mass and corrosion resistance – contact us for details
Recommended cables K14AB02 / K01AB02 – build yours in the Cable Builder
Recommended mounting bases H02B02 / H02B36

Key specifications

Full specifications in the datasheet (PDF) →

Sensitivity (±10%)

10 mV/g (1 mV/(m/s²))

Measurement range

±500 g

Broadband resolution

0.001 g rms

Frequency range

2 – 10k Hz (±5%) · 1.2 – 12k Hz (±10%)

Resonance frequency

≥ 48 kHz

Transverse sensitivity

≤ 5%

Excitation

20 – 30 VDC, 2 – 20 mA

Output bias voltage

8 – 12 V

Spectral noise (10 / 100 / 1000 Hz)

60 / 24 / 16 µg/√Hz

Vibration / shock limit

2,200 g rms · 5,500 g pk

Connector / mounting

M5 side (10-32 opt.) · M5 × 3.7 (10-32 opt.) thread

Size / mounting torque

HEX 13.1 × 18.8 mm · 3.0 N·m

Sensitivity measured at 160 Hz, 24 VDC, 4 mA. Typical values. Vibration and shock limits per JBT 6822-2018 7.12.1 and refer to the sensor surviving in a non-powered state.

Other models in the BXXA/B00 family

Same shear-mode ceramic, IEPE electronics and stainless-steel housing across the family. A00 models have a top connector, B00 models a side connector. Choose the sensitivity and range that fit your test levels.

Model	Sensitivity	Range	Frequency (±5%)	Connector	Size · weight
B02A00	10 mV/g	±500 g	2 – 10k Hz	Top	HEX 13.1 × 25 mm · 12 g
B03A00	20 mV/g	±250 g	1 – 10k Hz	Top	HEX 13.1 × 25 mm · 12.5 g
B05A00	50 mV/g	±100 g	1 – 8k Hz	Top	HEX 13.1 × 25 mm · 13 g
B06A00	100 mV/g	±50 g	1 – 8k Hz	Top	HEX 13.1 × 25 mm · 14 g
B02B00This model	10 mV/g	±500 g	2 – 10k Hz	Side	HEX 13.1 × 18.8 mm · 12 g
B03B00	20 mV/g	±250 g	1 – 10k Hz	Side	HEX 13.1 × 18.8 mm · 12.5 g
B05B00	50 mV/g	±100 g	1 – 8k Hz	Side	HEX 13.1 × 18.8 mm · 13.3 g
B06B00	100 mV/g	±50 g	1 – 8k Hz	Side	HEX 13.1 × 18.8 mm · 14.2 g

Downloads & next steps

Datasheet, installation guide, and a quote from our global support team.

B02B00 datasheet (PDF)Request a quote

Also available: Accelerometer operation & installation guide (PDF)

Sensitivity (mV/g)	10
Range (g)	500
Broadband Resolution (g rms)	0.001
Linearity	1%
Frequency Range [5%] (Hz)	2-10k
Min Frequency [5%] (Hz)	2
Max Frequency [5%] (Hz)	10000
Frequency Range [10%] (Hz)	1.2-12k
Resonant Frequency (kHz)	≥48
Discharge Time Constant (s)	≤1
Transverse Sensitivity	≤5%
Excitation Voltage (Vdc)	20-30 Vdc
Constant Current Excitation (mA)	2-20 mA
Output Impedance (Ω)	≤100
Output Bias Voltage (V)	8-12 Vdc
Max Acceleration (g)	2200
Max Shock (g)	5500
Temperature Range (℃)	-40~120
Min Temperature (°C)	-40
Max Temperature (°C)	120
Sensitivity Temperature Coefficient (%/℃)	-0.1
Sealing	Laser Welding IP68
Housing Material	Stainless Steel
Output Connector	10-32 (Side), M5 (Side)
Mounting	10-32 Female, M5 Female
Weight (grams)	12
Sensor Type	General Purpose
Output Type	IEPE
Axis	Uniaxial
TEDS Optional	Yes

Datasheet (PDF): B02B00
Manual (PDF): Op. & Installation Guide
Popular Cables: K14AB02, K01AB02
Popular Mounting Bases: H02B02, H02B36
TEDS Model: 20200B
