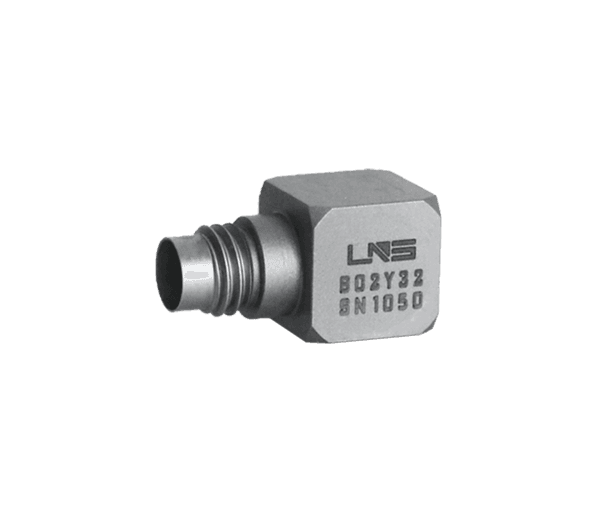

B02Y32
Miniature IEPE Accelerometer
Triaxial
Sensitivity: 10mV/g
Range: ±500g
Frequency (5%): 1-10kHz
Temp Range: -50~120°C
Connector: 1/4-28 4pin
Mount: M2.5 Female/Adhesive
- Fast Lead Time
B02Y32 – Miniature Triaxial IEPE Accelerometer
The B02Y32 offers a balanced range and sensitivity in the miniature triaxial form factor—ideal for vibration and moderate shock testing where three axes and compact mounting matter.
Key Features & Highlights
- Triaxial (X, Y, Z) sensing in a miniature design
- Sensitivity: ~10 mV/g
- Range: ±500 g
- Frequency response: ~1 Hz to 10 kHz
- Temperature range: –50 °C to +120 °C
- Connector: ¼-28 four-pin; Mount: M2.5 female/Adhesive
Why Choose the B02Y32?
For engineers who require a compact, triaxial accelerometer with moderate range and higher sensitivity than typical high-g units—this model fills the “sweet spot” between full shock sensors and high-sensitivity vibration sensors. Great for automotive NVH, electronics module testing, and structural analysis.
Typical Applications
- Three-axis vibration and acceleration monitoring of vehicle modules
- Modal analysis where multi-axis data provides richer insight
- Structural vibration testing in compact test rigs
- Industrial electronics reliability screening
| Sensitivity (mV/g) | 10 |
|---|---|
| Range (g) | 500 |
| Broadband Resolution (g rms) | 0.001 |
| Linearity | 1% |
| Frequency Range [5%] (Hz) | 1-10k |
| Min Frequency [5%] (Hz) | 1 |
| Max Frequency [5%] (Hz) | 10000 |
| Frequency Range [10%] (Hz) | 0.5-11k |
| Resonant Frequency (kHz) | ≥70 |
| Discharge Time Constant (s) | ≤1 |
| Transverse Sensitivity | ≤5% |
| Excitation Voltage (Vdc) | 20-30 Vdc |
| Constant Current Excitation (mA) | 2-20 mA |
| Output Impedance (Ω) | ≤100 |
| Output Bias Voltage (V) | 8-12 Vdc |
| Max Acceleration (g) | 2000 |
| Max Shock (g) | 5000 |
| Temperature Range (℃) | -50~120 |
| Min Temperature (℃) | -50 |
| Max Temperature (℃) | 120 |
| Sensitivity Temperature Coefficient (%/℃) | -0.05 |
| Sealing | Laser Welding IP68 |
| Housing Material | Titanium Alloy |
| Output Connector | 1/4-28 4pin |
| Mounting | Adhesive, M2.5 Female |
| Weight (grams) | 3.4 |
| Sensor Type | Miniature |
| Output Type | IEPE |
| Axis | Triaxial |
| TEDS Optional | Yes |
- Datasheet (PDF): B02Y32
