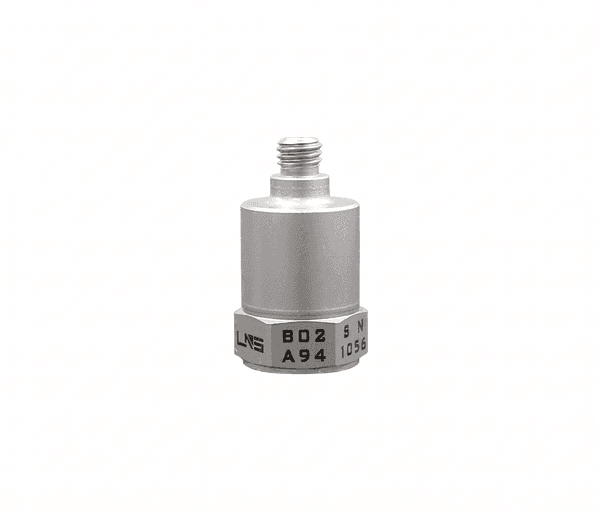

High-Temperature IEPE Accelerometer
Uniaxial
Sensitivity: 10mV/g
Range: ±500g
Frequency (5%): 1-10k Hz
Temp Range: -50~160°C
Connector: Top
Mount: 10-32/M5 Female
- Fast Lead Time
Overview
The B02A94 is a high-temperature uniaxial IEPE accelerometer built on a piezoelectric ceramic shear structure with an internal high-temperature, low-impedance circuit rated to +160 °C. With 10 mV/g sensitivity and a ±500 g range it is the highest-range model in the family, built for high-level vibration and moderate shock at elevated temperatures. Typical uses include engine, exhaust and turbocharger NVH, HALT/HASS and thermal-cycling chambers, and durability testing on hot assemblies.
High-quality piezoelectric material gives low temperature drift and a low thermal transient response, with wide bandwidth and low transverse sensitivity. The HEX 11 × 20.7 mm laser-welded stainless-steel housing provides exceptional sealing (IP68) and strength, with a top connector and an M5 mounting thread on the base, and 10-32 connector and thread versions available.
Why engineers choose the B02A94
Rated to +160 °C
A built-in high-temperature circuit and low-drift piezoelectric material keep the output stable from −50 °C right up to +160 °C, with a low thermal transient response, so readings stay clean through thermal cycling and on hot surfaces.
Built-in IEPE electronics
Integrated microminiature low-impedance circuit with 2–20 mA constant-current excitation and 8–14 V bias. Spectral noise of 24 µg/√Hz at 100 Hz drives long cables into any IEPE-compatible DAQ without extra conditioning.
Rugged stainless housing
Laser-welded HEX 11 × 20.7 mm stainless-steel housing sealed to IP68, weighing 9 g and rated to 2,200 g rms vibration and 5,500 g pk shock. Top connector with M5 or 10-32 options.
Typical applications
Environmental and thermal-cycling testing- Environmental stress screening (ESS)
- Engine, exhaust and powertrain NVH
- Vibration control and shaker testing at temperature
- General vibration monitoring on hot machinery and process equipment
- General-purpose uniaxial vibration measurement
What’s in the box
- B02A94 high-temperature accelerometer
- Product calibration certificate
- Mounting screw
Options & accessories
- Optional versions: B02A94-A with 10-32 output connector, B02A94-E with 10-32 mounting thread
- Recommended high-temperature cable K14AB02 – build yours in the Cable Builder
- Recommended mounting base H02B01
Key specifications
Other models in the BXXA/B94 family
Same +160 °C electronics and stainless-steel housing across the family. A94 models have a top connector, B94 models a side connector. Choose the sensitivity and range that fit your test levels.
| Model | Sensitivity | Range | Frequency (±5%) | Connector | Size · weight |
|---|---|---|---|---|---|
| B02A94This model | 10 mV/g | ±500 g | 1 – 10k Hz | Top | HEX 11 × 20.7 mm · 9 g |
| B03A94 | 20 mV/g | ±250 g | 1 – 10k Hz | Top | HEX 13.1 × 25 mm · 14 g |
| B05A94 | 50 mV/g | ±100 g | 1 – 10k Hz | Top | HEX 13.1 × 25 mm · 17 g |
| B06A94 | 100 mV/g | ±50 g | 1 – 9k Hz | Top | HEX 13.1 × 25 mm · 17 g |
| B02B94 | 10 mV/g | ±500 g | 1 – 10k Hz | Side | HEX 11.1 × 14.6 mm · 9 g |
| B03B94 | 20 mV/g | ±250 g | 1 – 10k Hz | Side | HEX 13.1 × 18.8 mm · 14 g |
| B05B94 | 50 mV/g | ±100 g | 1 – 10k Hz | Side | HEX 13.1 × 18.8 mm · 15 g |
| B06B94 | 100 mV/g | ±50 g | 1 – 9k Hz | Side | HEX 13.1 × 18.8 mm · 16 g |
B02A94 datasheet (PDF)| Sensitivity (mV/g) | 10 |
|---|---|
| Range (g) | 500 |
| Broadband Resolution (g rms) | 0.001 |
| Linearity | 1% |
| Frequency Range [5%] (Hz) | 1-10k |
| Min Frequency [5%] (Hz) | 1 |
| Max Frequency [5%] (Hz) | 10000 |
| Frequency Range [10%] (Hz) | 0.5-13k |
| Resonant Frequency (kHz) | ≥48 |
| Discharge Time Constant (s) | ≤1 |
| Transverse Sensitivity | ≤5% |
| Excitation Voltage (Vdc) | 20-30 Vdc |
| Constant Current Excitation (mA) | 2-20 mA |
| Output Impedance (Ω) | ≤100 |
| Output Bias Voltage (V) | 8-14 Vdc |
| Max Acceleration (g) | 2200 |
| Max Shock (g) | 5500 |
| Temperature Range (℃) | -50~160 |
| Min Temperature (°C) | -50 |
| Max Temperature (°C) | 160 |
| Sensitivity Temperature Coefficient (%/℃) | -0.07 |
| Sealing | Laser Welding IP68 |
| Housing Material | Stainless Steel |
| Output Connector | 10-32 (Top), M5 (Top) |
| Mounting | 10-32 Female, M5 Female |
| Weight (grams) | 9 |
| Sensor Type | High-Temperature |
| Output Type | IEPE |
| Axis | Uniaxial |
| TEDS Optional | No |
- Datasheet (PDF) B02A94
- Manual (PDF) Op. & Installation Guide
- Selection Guide (PDF) Accelerometer Selection Guide
- Popular Cables K14AB02
- Popular Mounting Bases H02B01
