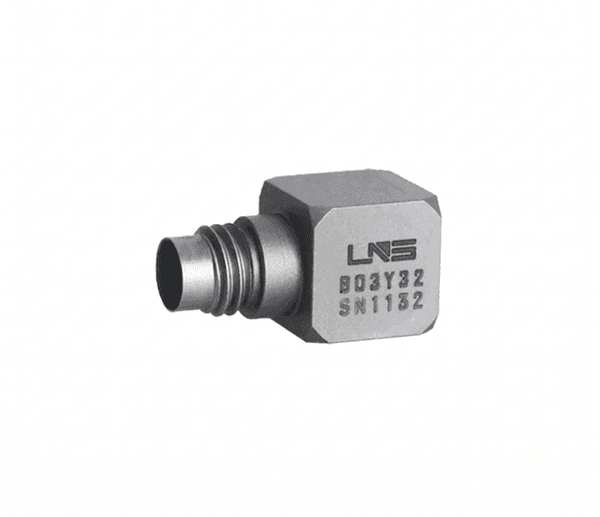

B03Y32
Miniature IEPE Accelerometer
Triaxial
Sensitivity: 20mV/g
Range: ±250g
Frequency (5%): 1-10kHz
Temp Range: -50~120°C
Connector: 1/4-28 4pin
Mount: M2.5 Female/Adhesive
- Fast Lead Time
B03Y32 – Miniature Triaxial IEPE Accelerometer
The B03Y32 continues the miniature triaxial family with even higher sensitivity, making it well suited for vibration-dominated applications in multi-axis form factors.
Key Features & Highlights
- Triaxial measurement (X, Y, Z)
- Increased sensitivity compared to higher-g models (spec values vary)
- Range: e.g., ±250 g (typical for the series)
- Broad bandwidth suited for detailed vibration capture
- Temperature range: –50 °C to +120 °C
- Standard connector (1/4-28) and mounting format (M2.5/Adhesive)
Why Choose the B03Y32?
When your test scenario shifts from purely high-g shock into higher-sensitivity vibration or structural dynamics—but you still need three axes and minimal package size—the B03Y32 is ideal. It gives you the fidelity needed for modal tests, structural vibration monitoring or compact equipment screening.
Typical Applications
- Structural vibration capture of small assemblies or subsystems
- Electronics board vibration/fatigue analysis where three-axis data is valuable
- R&D labs where multi-axis mounting time and space are key concerns
- Industrial equipment monitoring in constrained spaces
| Sensitivity (mV/g) | 20 |
|---|---|
| Range (g) | 250 |
| Broadband Resolution (g rms) | 0.0005 |
| Linearity | 1% |
| Frequency Range [5%] (Hz) | 1-10k |
| Min Frequency [5%] (Hz) | 1 |
| Max Frequency [5%] (Hz) | 10000 |
| Frequency Range [10%] (Hz) | 0.5-11k |
| Resonant Frequency (kHz) | ≥52 |
| Discharge Time Constant (s) | ≤1 |
| Transverse Sensitivity | ≤5% |
| Excitation Voltage (Vdc) | 20-30 Vdc |
| Constant Current Excitation (mA) | 2-20 mA |
| Output Impedance (Ω) | ≤100 |
| Output Bias Voltage (V) | 8-12 Vdc |
| Max Acceleration (g) | 1200 |
| Max Shock (g) | 3000 |
| Temperature Range (℃) | -50~120 |
| Min Temperature (℃) | -50 |
| Max Temperature (℃) | 120 |
| Sensitivity Temperature Coefficient (%/℃) | -0.05 |
| Sealing | Laser Welding IP68 |
| Housing Material | Titanium Alloy |
| Output Connector | 1/4-28 4pin |
| Mounting | Adhesive, M2.5 Female |
| Weight (grams) | 3.5 |
| Sensor Type | Miniature |
| Output Type | IEPE |
| Axis | Triaxial |
| TEDS Optional | Yes |
- Datasheet (PDF): B03Y32
