Description

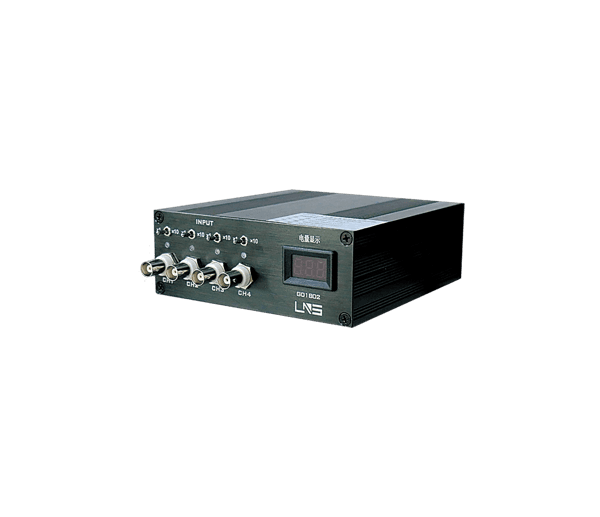

The G01B02 is a portable 4-channel constant current source designed for IEPE piezoelectric sensors, including accelerometers, force, and pressure sensors. Featuring selectable ×1 / ×10 amplification, low noise, and a built-in rechargeable lithium battery, it delivers stable, high-quality signals for precise measurements. Ideal for both lab and field use, the G01B02 simplifies multi-channel testing and connects directly to analyzers or data acquisition systems.
Also available in 8 and 16-channel configurations.
Additional information
| Size | 145 x 155 x 62 mm |
|---|---|
| Frequency Response (Hz) | 0.1~100k (x1), 0.1~30k (x10) |
| Broadband Noise (mV rms) | 0.01 (x1), 0.5 (x10) |
| Interchannel Interference | <50 μV rms |
| Input Connector | BNC (Female) |
| Output Connector | BNC (Female) |
| Constant Current Excitation (mA) | 4 mA Default |
| Excitation Voltage (Vdc) | 18-30 Vdc |
| Precision | 1% |
| Output Range (V) | 0-5 V |
| Supply Voltage | 24V Built-in Lithium Battery, External Power Supply |
| Weight (grams) | 1050 |
