Description

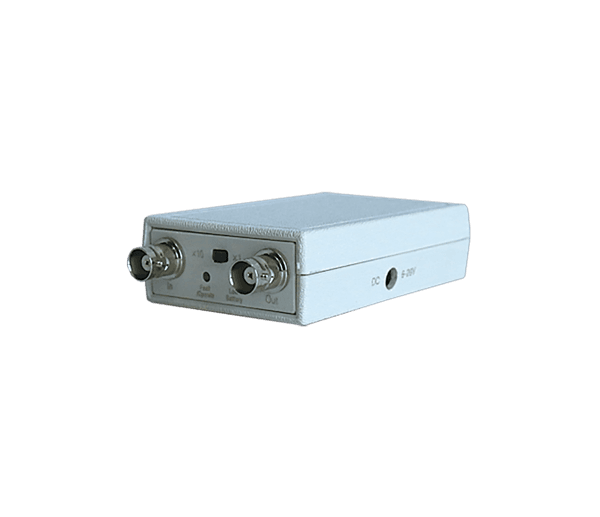

G01A02 – IEPE Constant Current Source (1ch)
The G01A02 is a compact, portable constant current source designed for use with IEPE accelerometers, pressure sensors, and force sensors. Powered by a 9V battery or external DC supply, it delivers stable, low-noise performance with ±6V output and selectable ×1/×10 amplification. Ideal for lab and field use, the G01A02 simplifies sensor connection, enabling direct integration with standard data acquisition systems and display devices, without the need for external amplifiers.
Key features:
-
Wide frequency response (0.1 Hz–100 kHz)
-
Low noise operation (0.01 mV rms)
-
Compact, rugged design with battery or DC power
-
BNC connectors for easy setup
-
LED status indicators for power, operation, and battery
Additional information
| Size | 97 x 61 x 27 mm |
|---|---|
| Frequency Response (Hz) | 0.1 – 100k (x1), 0.1 – 50k (x10) |
| Broadband Noise (mV rms) | 0.01 (x1), 0.1 (x10) |
| Input Connector | BNC (Female) |
| Output Connector | BNC (Female) |
| Constant Current Excitation (mA) | 2~10 mA Factory Customizable, 4 mA Default |
| Excitation Voltage (Vdc) | 23 Vdc |
| Precision | 1% |
| Output Range (V) | ±6 |
| Supply Voltage | 9V Battery, 7~24 Vdc External Supply |
